DHR31-A4系列

（360度旋轉）

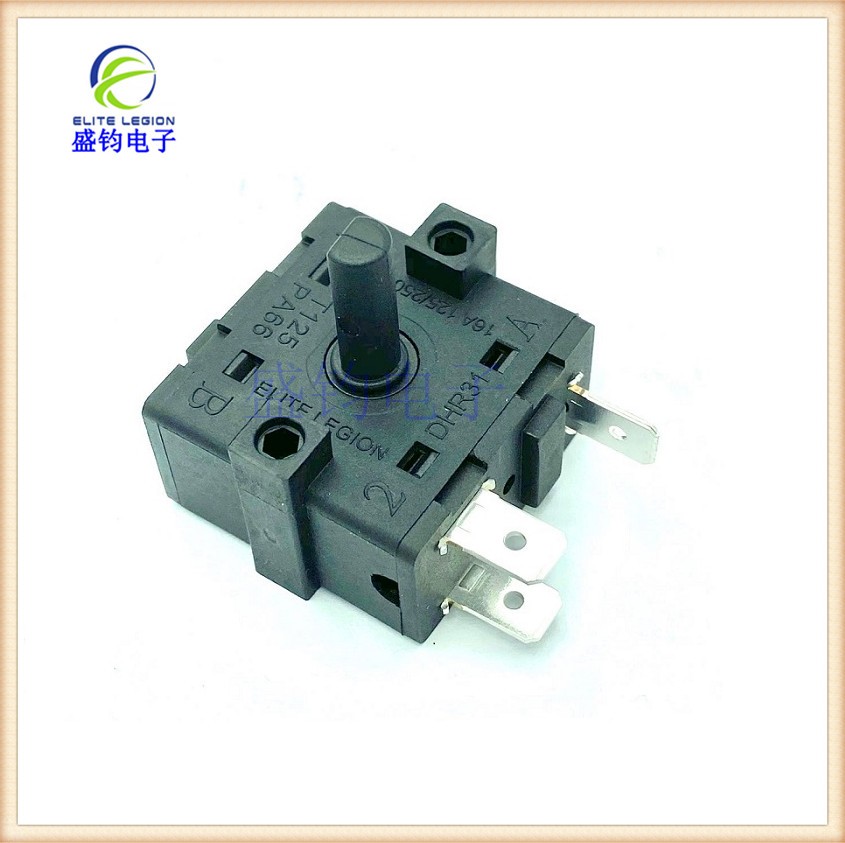

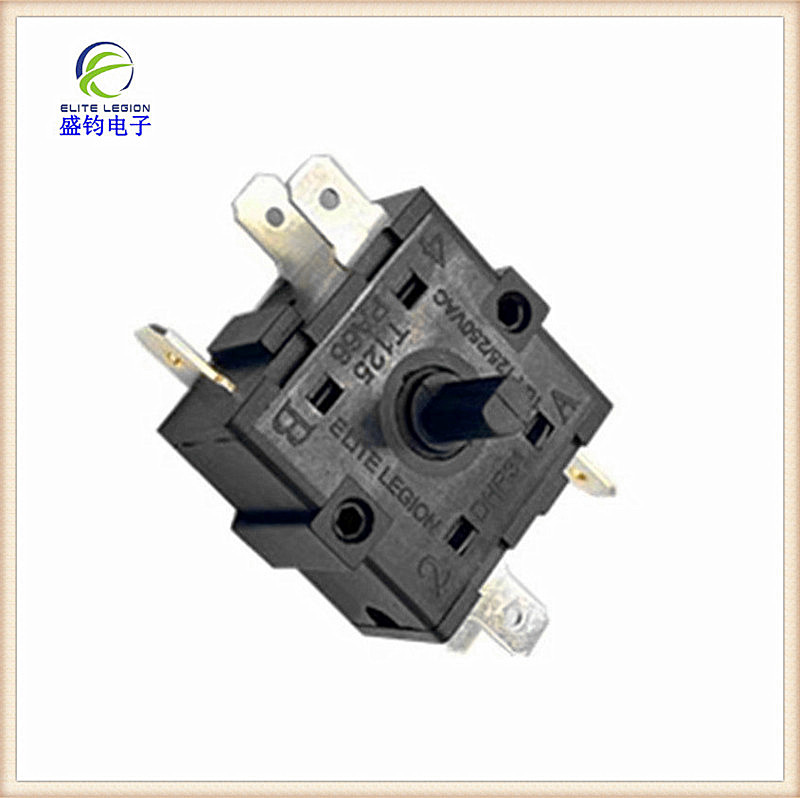

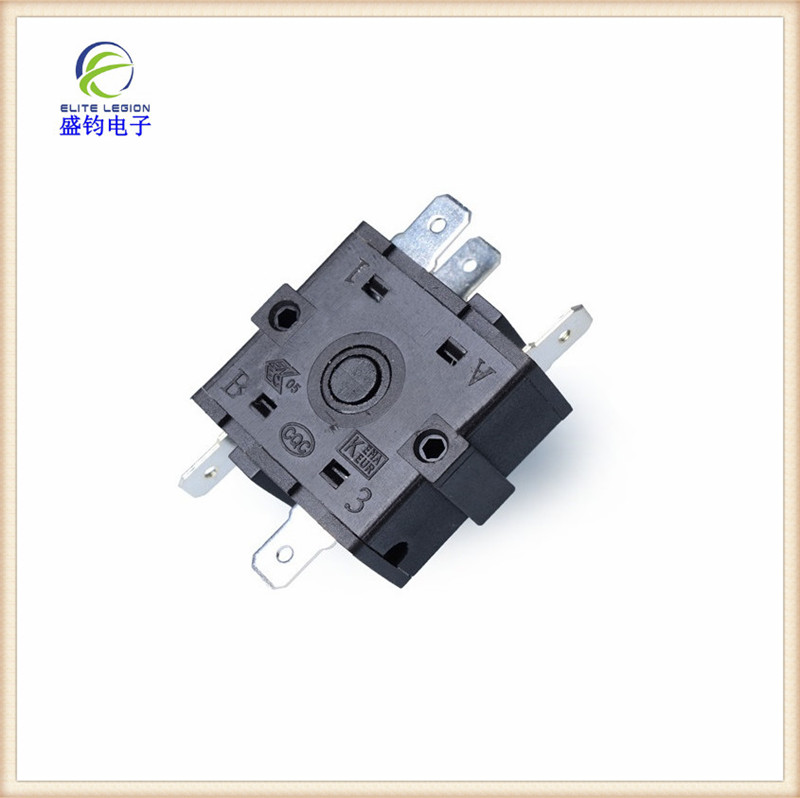

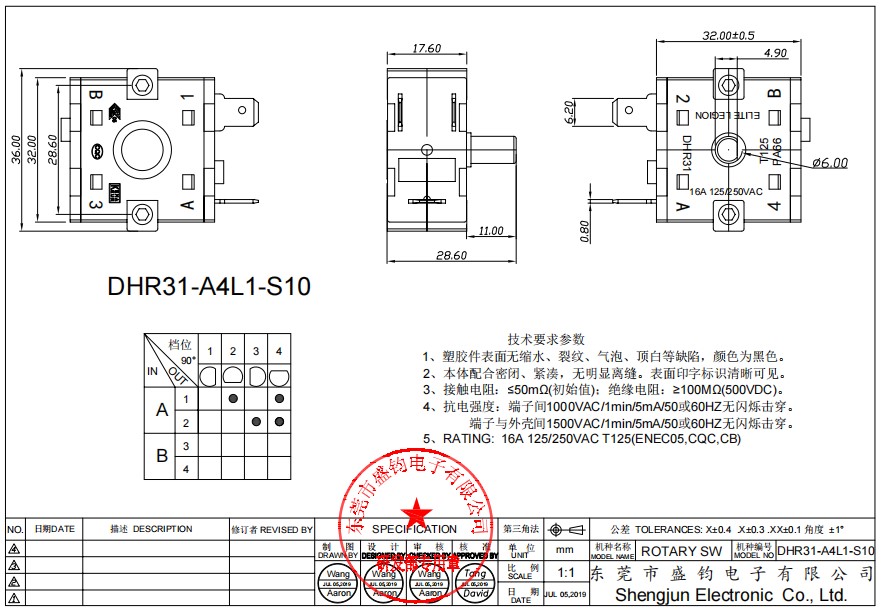

DHR31-A4L1-S10

DHR31系列旋轉角度可做30度、45度、60度、90度 以上舉例展示 *更多功能  聯系我們*

Raing 額定:

16A 125/250VAC（ENEC、CQC、CB）

ELECTRICAL(電氣性能)

CONTACT RESISTANCE (接(jie)觸(chu)電阻) - 50mΩ Max.

OPERATION FORCE (操作力量) - 1500±200gf

INSULATION RESISTANCE (絕緣電(dian)阻(zu)) - 100MΩ Min. 500VDC

DIELECTRIC STRENGTH (耐電壓) - 1500VAC/5s

ELECTRICAL LIFE (電氣壽(shou)命) - 10,000 CYCLES

MATERIAL (材(cai)質)

BASE (基座) - PA66(UL 94V-0)

ACTUATOR (柄) - PA66 (UL94V-0)

ROTOR (齒(chi)輪) - PA66+30%GF (UL94V-0)

CONTACT (接點) - SILVER TIN INDIUM OXIDE ALLOY

SPRING (彈(dan)簧) - SWC

STEEL BALL (鋼(gang)珠) - NICKEL PLATED STEEL WIRE

TERMINAL (端子) - PHOSPHOR BRONZE PICKLING / SILVER-PLATED BRASS

規格(ge)詳細說明：

1.APPLICATION TEMPERATURE RANGE (適用溫度范圍(wei)): -10-125°C

2.  TEST CONDITION  (測(ce)試環境):

THE SWITCH IS TESTED AT A TEMPERATURE RANGE OF 5-35°C AND RELATIVE HUMIDITY RANGE OF 45-85%.

          * 環境溫度(du)范(fan)圍 : 5 - 35℃

          * 相對濕度范圍 : 45 - 85%

3.  RATING (額定):16A 125VAC / 16A 250VAC

4. ; ELECTRONICAL PERFORMANCE (電氣性(xing)能):       ;

    4-1.CONTACT RESISTANCE (接觸(chu)電阻):MEASURED BY FALL-OF-POTENTIAL METHOD AT DC 0.2V/1A SHOULD BE LESS THAN 50mΩ INITIAL.

          * 以(yi)微電(dian)阻(zu)計在DC 0.2V/1A的測試規格值下, 接觸電(dian)阻(zu)值應該小于50mΩ.

    4-2. INSULATION RESISTANCE (絕緣電阻):MEASURED WITH DC 500V APPLIED BETWEEN TERMINALS OF OPEN CONTACTS AND BETWEEN TERMINAL OF OPPOSITE POLARITY OR METAL PART. SHOULD BE MORE THAN 100MΩ.

          * 絕(jue)緣(yuan)電阻計于DC 500V設定(ding)值下(xia)量測于開路的(de)端子或不同回路的(de)端子, 其絕(jue)緣(yuan)電阻值應該大于100MΩ.

    4-3. DIELECTRIC STRENGTH (耐電(dian)壓):THE SWITCH SHALL WITHSTAND WITHOUT BREAKDOWN A POTENTIAL OF AC 1500V 0.5mA FOR MINUTE BETWEEN TERMINALS OF OPEN CONTACTS AND TERMINALS OF OPPOSITE POLARITY OR METAL PART.

          * 不同極的(de)兩支(zhi)端子開路時, 必(bi)須(xu)(xu)通(tong)過一(yi)分(fen)(fen)鐘(zhong)(zhong)1500VAC 0.5mA的(de)耐(nai)(nai)電壓.* 端子與外殼, 必(bi)須(xu)(xu)通(tong)過一(yi)分(fen)(fen)鐘(zhong)(zhong)1500VAC 0.5mA的(de)耐(nai)(nai)電壓.

5.本款(kuan)旋轉式電源開關(guan)的安(an)規：ENEC 、CQC、CB。

6.綜述(shu)： DHR31型號旋轉開關多用在電(dian)暖器(qi)(qi)(qi)、烤箱、電(dian)氣灶、電(dian)烤爐、鼓(gu)風機、加濕器(qi)(qi)(qi),、按摩(mo)器(qi)(qi)(qi)材、 電(dian)烤箱、 暖風機等家用電(dian)器(qi)(qi)(qi)及儀器(qi)(qi)(qi)、機械設備做電(dian)源(yuan)控制機械等大功(gong)率電(dian)器(qi)(qi)(qi)上。可(ke)(ke)360度通段旋轉，檔(dang)(dang)位之(zhi)間的角(jiao)度有90/60/45/30（可(ke)(ke)作4檔(dang)(dang)，6檔(dang)(dang)，8檔(dang)(dang)功(gong)能）。
