Raing 額(e)定: 3A/6A 125/250V

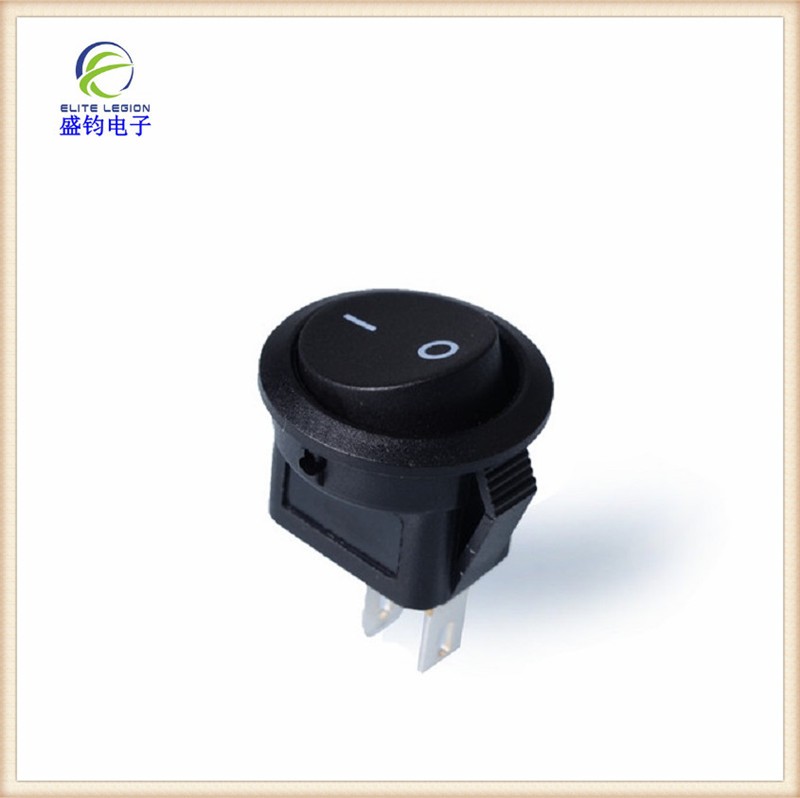

規格尺寸：直徑16mm

安規：ENEC、CQC、CB等

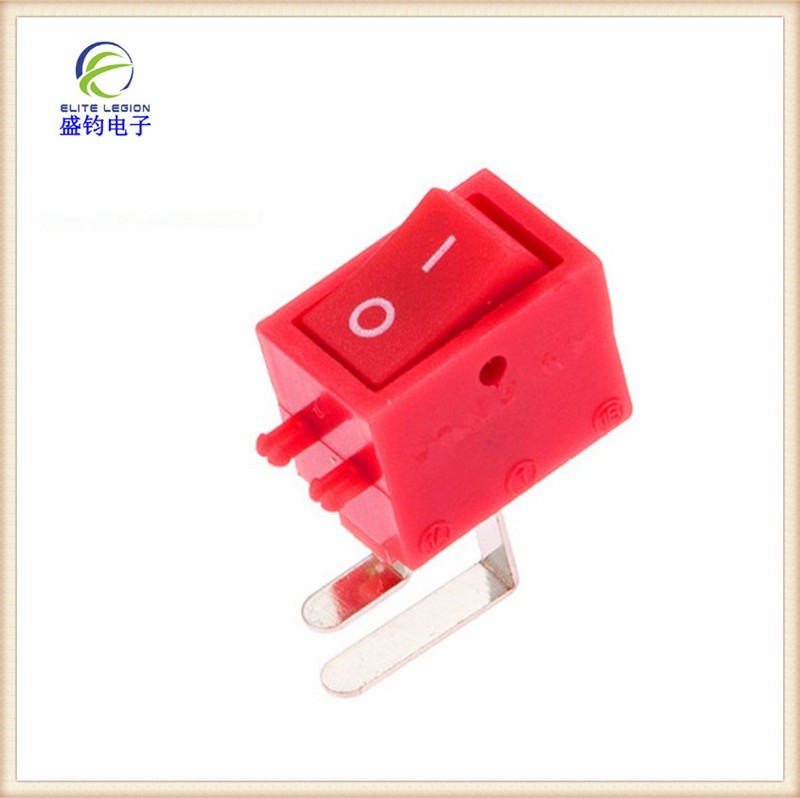

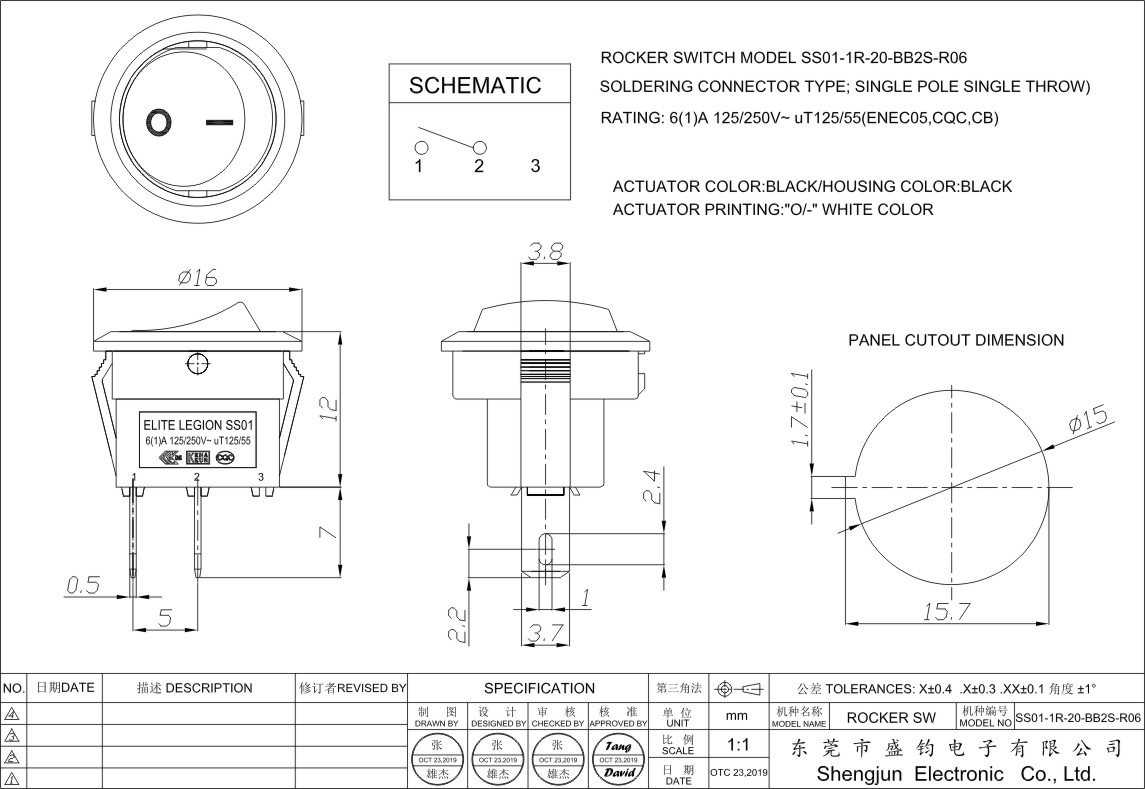

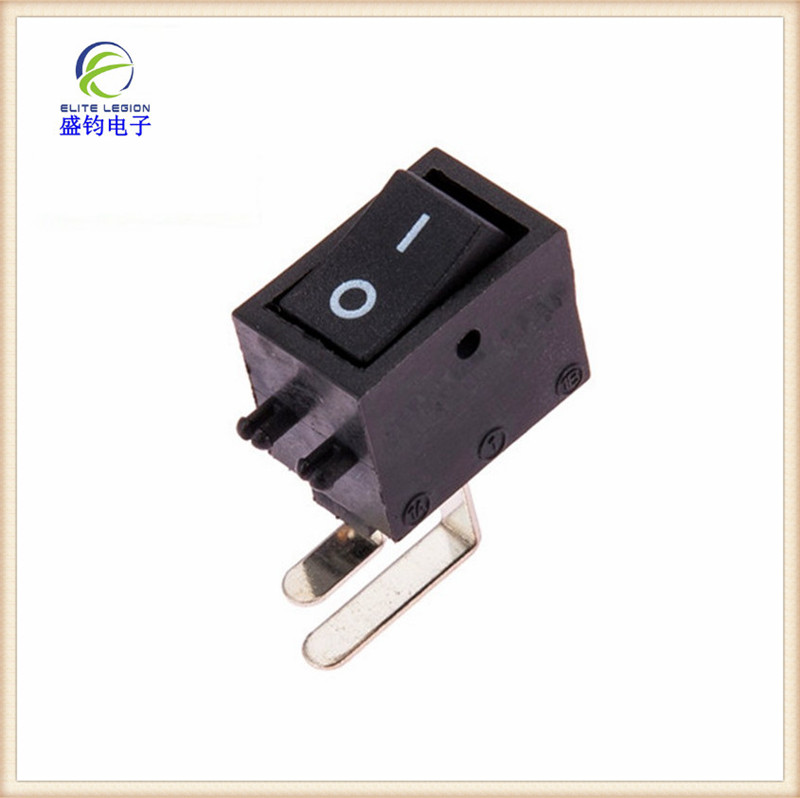

1.ROCKER SWITCH MODEL SS01-1R

2.PCB CONNECTOR TYPE: SINGLE POLE SINGLE THROW

3.RATING: 3A 125/250VAC

4.CONTACT RESISTANT: <;20MΩ (INITIAL)

5.DIELECTRIC STRENGTH: 1500V 1MIN

6.INSULATION RESISTANCE: >100MΩ

7.MECHANICAL LIFE: >3000 CYCLES (500VDC BETWEEN OPEN CONTACTS)

8.ELECTRICAL LIFE: >10000 CYCLES

9.TEMPERATURE RISE AT THE TERMINAL: MAX.30'C

10. ALL MATERIALS ARE ROHS COMPLIANT

11.ACTUATOR & HOUSING COLOR: BLACK

12.ACTUATOR PRINTING

13.SOLDER ABILITY OF TERMINAL: MAX350'C,3S (NO PRESSURE MAY BE PLACED IN THE TERMINALS WHEN SOLDERING BY HAND)

MATERIAL (材(cai)質):

(轉子) ROTOR：BRASS,NICKEL PLATED

(基座(zuo)) TERMINAL BASE: NYLON 66(94V-0)

(柄) ACTUATOR：PC(94V-0)

(彈簧) SPRING BLADE: STAINLESS

(接觸片) CONTACT：COPPER,SILVERPLATED

(端(duan)子) TERMINAL : BRASS,TIN PLATED

(接(jie)點(dian)) CONTACT：Ag CLAD COPPER Alloy

主要用(yong)途(tu): 儀器(qi)(qi)設備(bei)、辦(ban)公設備(bei)、小家(jia)電(dian)(dian)、機頂盒(he)、路(lu)由(you)器(qi)(qi)、數字機盒(he)、電(dian)(dian)氣設備(bei)、熱敏打印機等做(zuo)電(dian)(dian)源控制。
